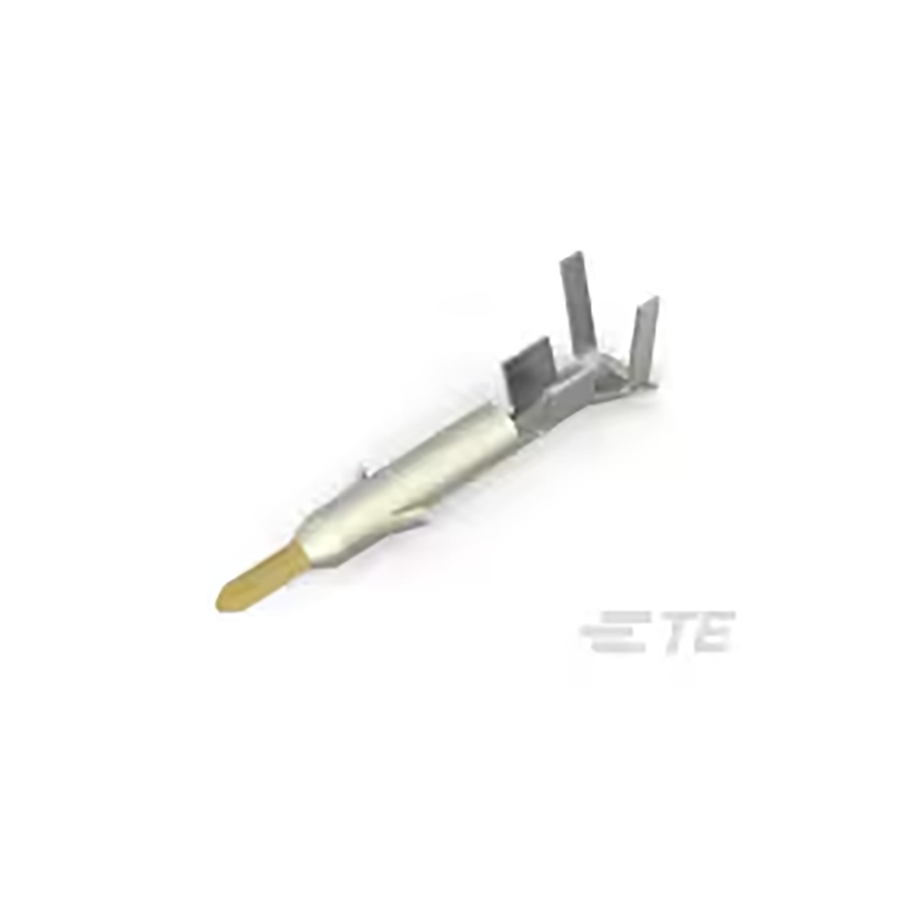

1-770903-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-770903-0
Datasheet:
Description:
IC and Component Sockets Cable Pin
| Parameter | Value |
|---|---|
| Length | 17.04 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 4.42 mm |
| Material | Brass |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 3.81 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Current Rating | 9.5 A |
| Max Current Rating | 11.2 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Pin (Male) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Pin |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 11.2 A |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Plating | Gold |
| Insulation Diameter | 2.3876 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| VDE Tested | Yes |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 2781
Distributors
pcbx
pcbxUnit Price$1.69690
Ext.Price$1.69690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.69690 | $1.69690 |
| 10 | $0.84845 | $8.48450 |
| 25 | $0.65265 | $16.31625 |
| 50 | $0.50204 | $25.10200 |
| 100 | $0.41837 | $41.83700 |
| 300 | $0.34864 | $104.59200 |
| 500 | $0.29053 | $145.26500 |
| 1000 | $0.24211 | $242.11000 |
| 3000 | $0.20176 | $605.28000 |
| 5000 | $0.19310 | $965.50000 |
| 10000 | $0.18481 | $1848.10000 |
| 30000 | $0.17687 | $5306.10000 |
| 60000 | $0.16927 | $10156.20000 |
